introduction to `RNN`

学习地址：

• https://www.youtube.com/watch?v=lWkFhVq9-nc

Feed Forward Neural Network, FFNN

In a Feed-Forward Network, information flow only in forward direction.

1
2
3
4
5

graph LR;

I{input}; IL(Input Layer); HL(Hidden Layer); OL(Output Layer); O{Predicted output}

I-->IL; IL-->HL; HL-->OL; OL-->O;

1. Decisions are based on current input.
2. No memory about the past.
3. No future scope.

Question:

1. cannot handle sequential data.
2. considers only the current input.
3. cannot memorize previous inputs.

Recurrent Neural Network, RNN

1
2
3
4
5

graph LR;

I{input}; IL(Input Layer); HL(Hidden Layer); OL(Output Layer); O{Predicted output}

I-->IL; IL-->HL; HL-->OL; OL-->O; HL-->HL;

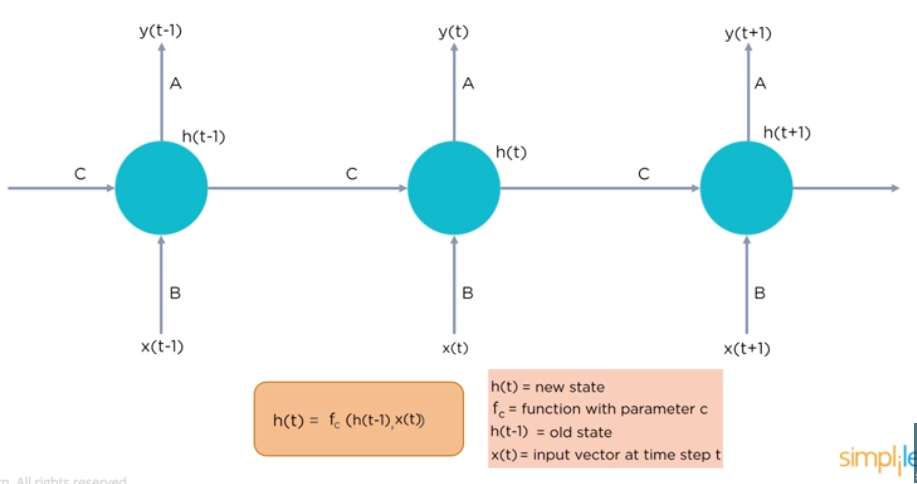

How does RNN works?

Types of RNN：

1. many to one network

2. many to many network

Gradient Problem:

• Vanishing Gradient Problem.
• Explaining Gradient Problem.

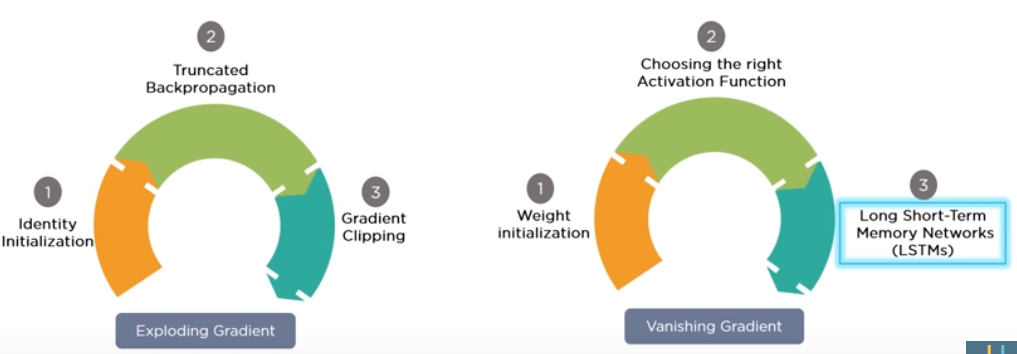

Solution to Gradient Problem:

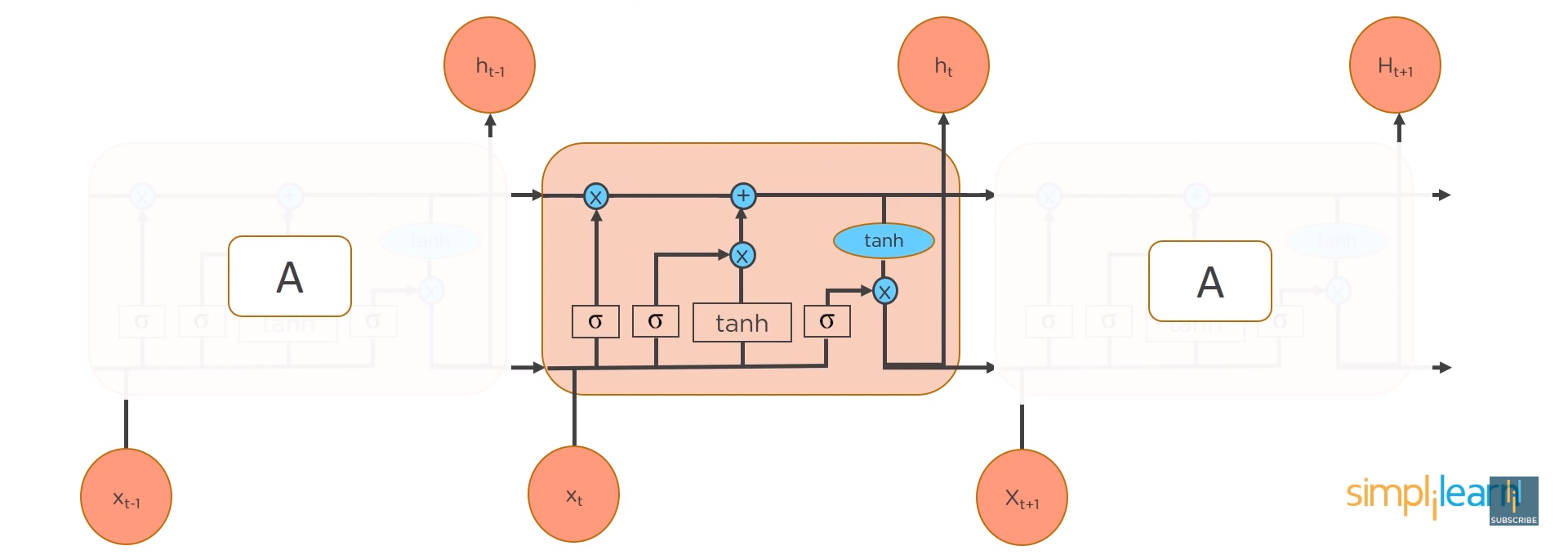

Long Short-Term Memory Network, LSTM

LSTMs are special kind of RNN, capable of learning long-term dependencies.

Three steps of LSTMs:

Step-1: Decides how much of the past it should remember

It looks at the previous state ($$h_{t-1}$$) and the current input $$x_t$$ and computes the function.

• $$f_t = \sigma(W_f [h_{t-1}, x_t] + b_f)$$, $$f_t$$ is called forget gate.

Step-2: Decides how much should this unit add to the current state

There are 2 parts:

• One is sigmoid function, it decides which values to let through (0 or 1).

  $$i_t = \sigma(W_i [h_{t-1}, x_t] + b_i)$$

• The other is tanh function, which gives the weightage to the value which are passed deciding their level of importance (-1 to 1).

  $$\overset{\sim}{C_t} = tanh(W_C [h_{t-1}, x_t] + b_c)$$

Step-3: Decides what part of the current cell state makes it to the output

$$o_t = \sigma(W_o [h_{t-1}, x_t] + b_0)$$, $$o_t$$ is called output gate.

$$h_t = o_t * tanh(C_t)$$

Implementation of LSTM
